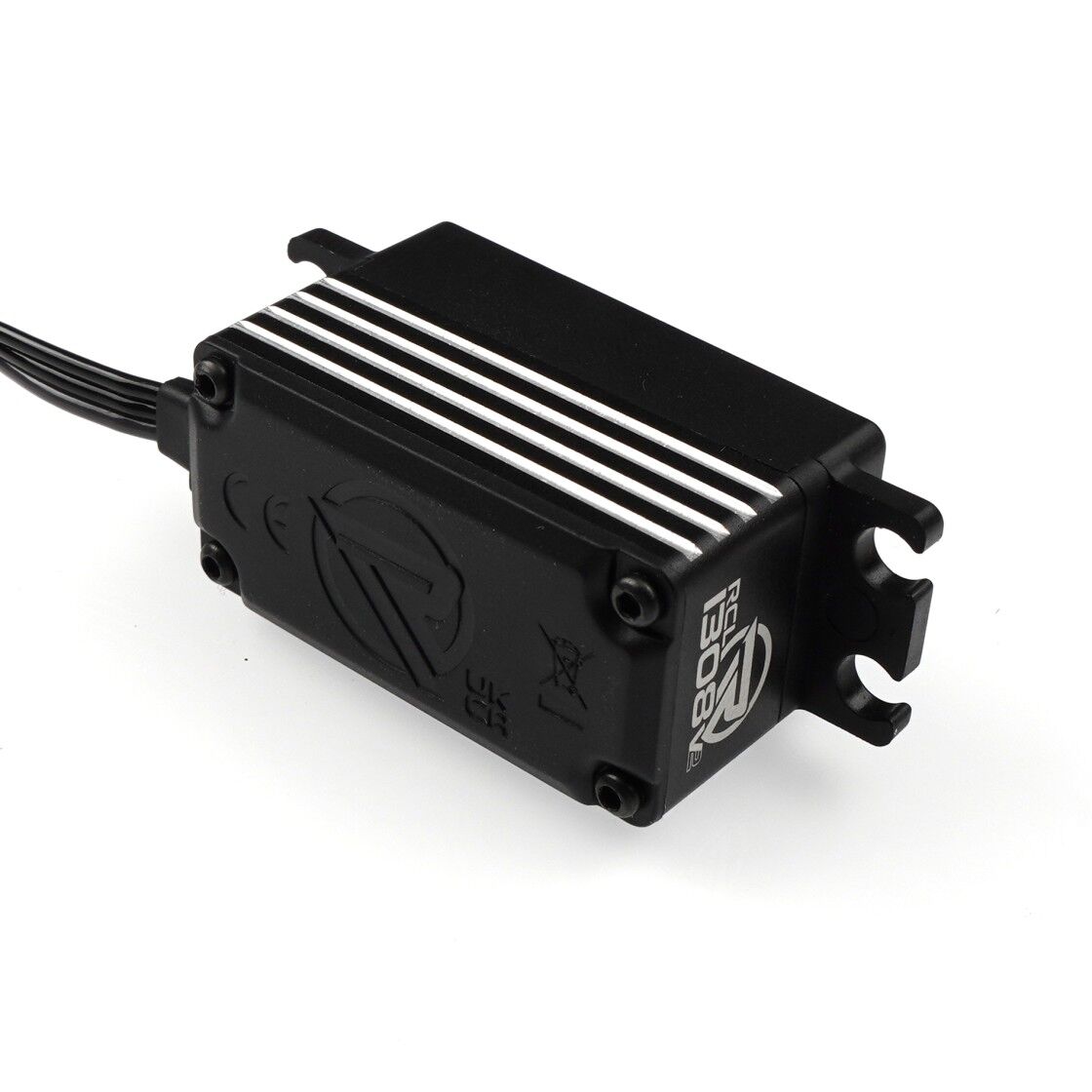

RUDDOG RCL1308V2 HV Low-Profile Coreless Servo (0.08s|13.2kg)
RUDDOG RCL1308V2 HV Low-Profile Coreless Servo (0.08s|13.2kg)
The tried-and-tested RUDDOG RCL1308 is moving into the next generation: discover the new RUDDOG RCL1308V2 HV Low-Profile Coreless Servo. Version 2 combines the outstanding and tried-and-tested performance of its predecessor with a fresh, revamped design and further-enhanced durability for the toughest conditions in RC racing.
Still uncompromisingly designed for demanding competition, the V2 also impresses with its lightweight plastic housing, supported by a sturdy aluminium centre section. The powerful coreless motor guarantees lightning-fast response times and extremely high efficiency. Thanks to its enhanced robustness, the servo delivers reliably precise movements and outstanding torque even in the most intense racing situations – ensuring you always retain full control on the track.
Features
Housing: Combined plastic housing with central aluminium section
Spline: 25T
Dimensions: 40.8 x 20.3 x 26.9 mm
Weight: 43.0 g
Actuation speeds: 0.101 s @6.0 V | 0.088 s @7.4 V | 0.081 s @8.4 V
Actuating forces: 11.7 kg @6.0 V | 13.2 kg @7.4 V | 14.1 kg @8.4 V
Voltage range: 4.8 – 8.4 V
Motor type: Coreless
Gearbox type: Metal
Cable length: 100 mm

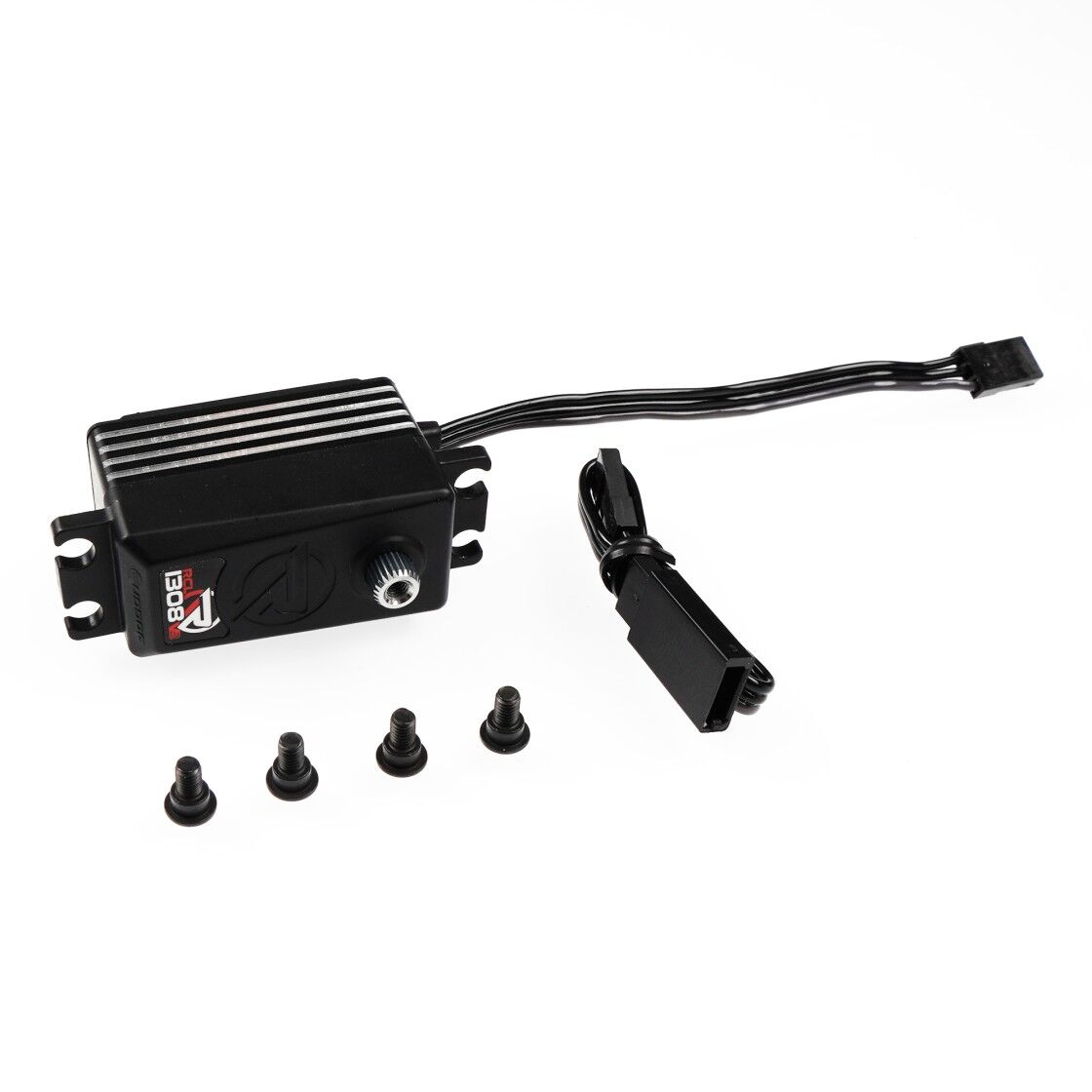

Contents
1x RUDDOG RCL1308V2 servo
4x mounting screws
1x 100 mm cable extension
