MXLR Rear Body Support for Awesomatix A800R/RR (1)
Product information "MXLR Rear Body Support for Awesomatix A800R/RR (1)"
The deformation of lightweight bodywork, especially at higher speeds, leads to a noticeable reduction in performance!
The solution is the MXLR rear body mount for the Awesomatix A800R/RR, which:
- prevents deformation of the bodywork at higher speeds
- reduces the risk of cracks in the wheel arches of the bodywork
The result is a longer life for your bodywork combined with better performance on the track as the bodywork retains its original shape and generates more downforce!
The MXLR rear body mount is made from high quality material that is very durable and offers excellent impact resistance! In the design, we paid particular attention to the design of the A800R bulkhead and the importance of "flexibility" in this area. Our rear body mount is designed to minimize the flex impact as much as possible!

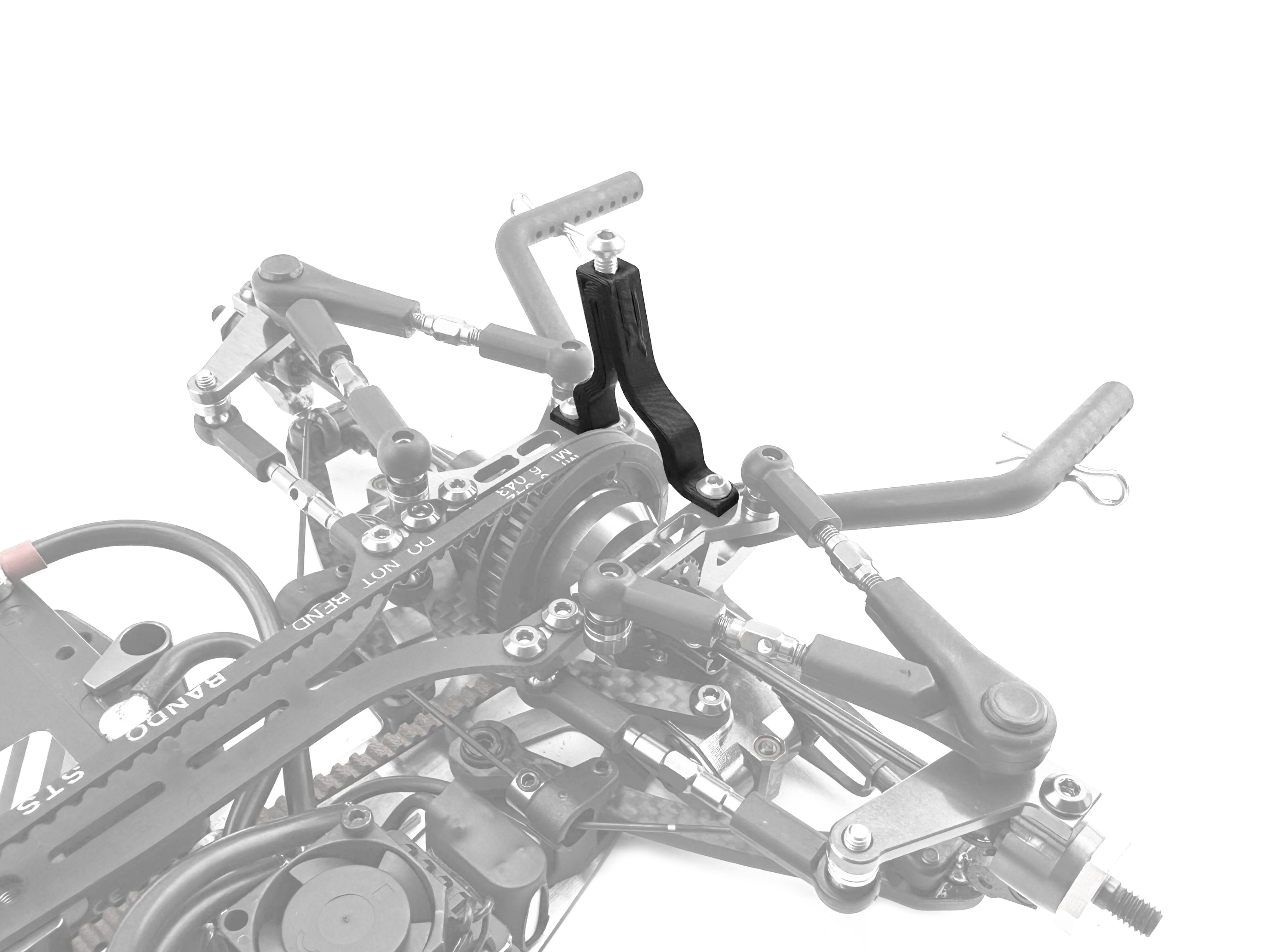

The rear body mount can be mounted in three different places in the car, depending on the different Toplink and Toplink mounting options!
1: On the rear top deck (possible in both directions)
2: In front of the AM19 Toplink brackets (facing backwards)
3: Behind the AM19 top link brackets (facing forwards)
With the standard AM19-R top link brackets, you can choose the desired position - all three fit.
With the optional AM19-TLT top link brackets, you can use the rear position and align the support to the front.
For long toplinks mounted on the bulkheads, you can use the AM19 front brackets.
In the gallery you will find pictures showing all three mounting options.
INFO: Mounting screws are not included in the scope of delivery! We recommend the use of Awesomatix alloy screws with a length of 7 mm (SB3X7AL).
Installation information:
- Select the correct mounting location to suit your Toplink configuration.
- Install the rear body mount.
- Adjust the rear body mount to the correct height! The top bolt (not included) should touch the trunk with no additional play when the body itself rests on the rear body post.
Side note: Don't forget that this product was made with a 3D printer. This means that you can see layers and lines of the material! We strive for the best quality that our printers can deliver. However, you must remember that 3D printed parts are not to the same standard as machined or molded products.
MAX-09-026 contains:

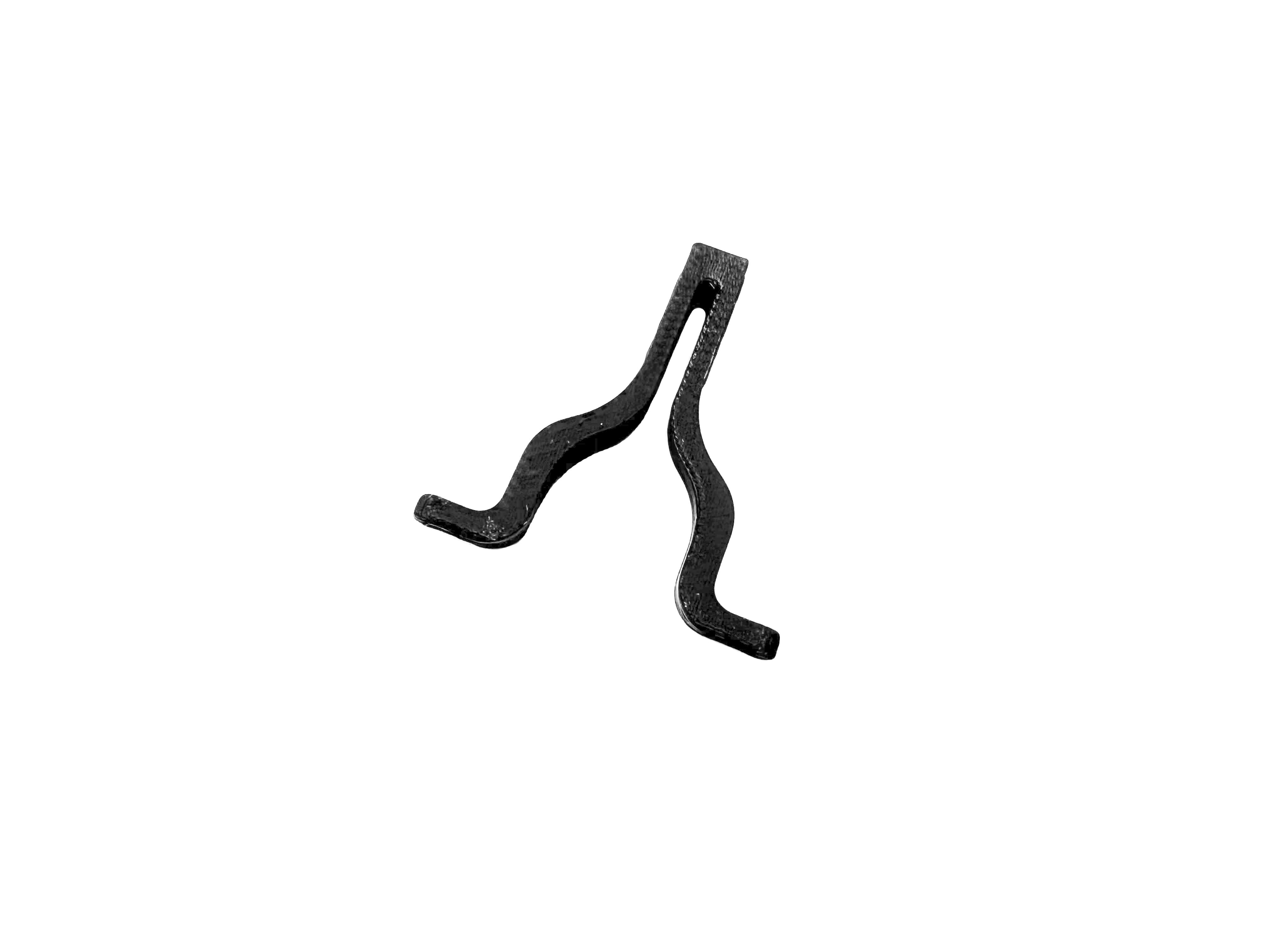

1x rear body mount for Awesomatix A800R/RR
Ergänzende Informationen / Additional information
Verantwortlicher / Responsible
RC-KleinKram Stefan Klein
Auf der Schinning 5, 57586 Weitefeld
DE
https://www.rc-kleinkram.de/
info@rc-kleinkram.de
Hersteller / Manufacturer
MXLR Max Mächler
Ringstraße 3, 74858 Aglasterhausen
DE
https://maexler.com/
info@maexler.com
 |
ACHTUNG: Nicht für Kinder unter 36 Monaten geeignet wegen verschluckbarer Kleinteile, Erstickungsgefahr. CAUTION: Not suitable for children under 36 months due to small parts that can be swallowed, choking hazard. |
| ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen. CAUTION: Not suitable for children under 14 years of age. Use under the direct supervision of adults. |
Sicherheitshinweise GHS / H-Sätze | Safety instructions / Hazard Statements
- H 315: Verursacht Hautreizungen (Causes skin irritation)
- H 319: Verursacht schwere Augenreizung (Causes severe eye irritation)
- H 335: Kann die Atemwege reizen (May irritate the respiratory tract)
Sicherheitshinweise GHS / P-Sätze | Safety instructions / Precautionary Statements
- P 102: Darf nicht in die Hände von Kindern gelangen. (Keep out of the reach of children.)
- P 261: Einatmen von Staub / Rauch / Gas / Nebel / Dampf / Aerosol vermeiden. (Avoid inhalation of dust / smoke / gas / mist / vapour / aerosol.)
- P 271: Nur im Freien oder in gut belüfteten Räumen verwenden. (Only use outdoors or in well-ventilated rooms.)
- P 280: Schutzhandschuhe / Schutzkleidung / Augenschutz / Gesichtsschutz tragen. (Wear protective gloves / protective clothing / eye protection / face protection.)
- P 305+351+338: Bei Kontakt mit den Augen: Einige Minuten lang behutsam mit Wasser spülen. Vorhandene Kontaktlinsen nach Möglichkeit entfernen. Weiter spülen (In case of contact with eyes: Rinse cautiously with water for several minutes. Remove any contact lenses if possible. Continue rinsing)
- P 312: Bei Unwohlsein Giftinformationszentrum oder Arzt anrufen. (If you feel unwell, call a poison information centre or doctor.)
- P 405: Unter Verschluss aufbewahren. (Store under lock and key.)
- P 501: Inhalt/Behälter … zuführen. (Feed contents/container ....)
Sicherheitshinweise / EUH | Safety instructions / EUH
- EUH 202: Cyanacrylat. Gefahr. Klebt innerhalb von Sekunden Haut und Augenlider zusammen. Darf nicht in die Hände von Kindern gelangen. ()
| Awesomatix Model: | A800R, A800RR |
|---|---|
| Spare Part Type: | Tuning Drittanbieter |
MXLR is the brand of the German Onroad driver Max Mächler. He offers various RC car accessories such as superglue, winglets, stickers, tire adhesives and balance weights for onroad vehicles under the name MXLR.
