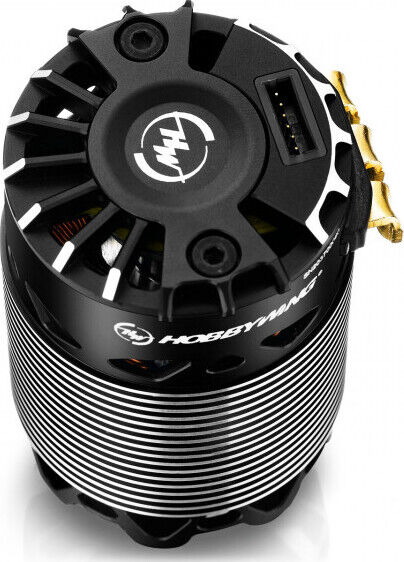

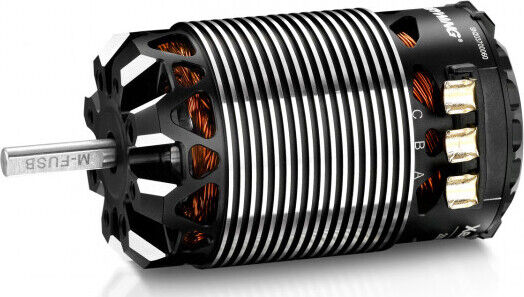

Hobbywing XeRun 4268SD Sensored Brushless Motor G3 2400kV 1:8 Onroad
Product information "Hobbywing XeRun 4268SD Sensored Brushless Motor G3 2400kV 1:8 Onroad"
The Xerun 4268 G3 motor offers RC drivers of 1/8 on-road models great driving fun with even better performance. This is thanks to the improved design and efficiency to combat the heat generated. Compared to the previous G2 motors, this has been increased by 6%, which significantly reduces heat generation.
100% sensor mode
With the built-in chip, the Xerun G3 motor can also be recognized by Hobbywing Xerun XR8 controllers. This combination results in a 100% sensor-controlled drive system. In addition, the Hall sensor system ensures clean and stable running in sensor mode.
Note: If the motor is connected to other controllers, there is no guarantee that the sensor mode will be active.
Turbo Timing Technology
When used with a controller from the XERUN XR8 series, "Turbo Timing" can also be activated. This is already being used very successfully in the 1/10 on-road sector and also releases the last power reserves of the motor.
Features
- Low heat development
- Low cogging torque
- High-quality materials and excellent workmanship
- Simple assembly
- Dust-tight to IP5X standard (1900kV, 2200kV and 2250kV)
Technical data:
| Scale: | 1/8 |
| Type: | Brushless Sensored |
| Power: | 2400kV |
| Consumption without load: | - |
| Number of cells LiPo: | 2-4S |
| Number of poles: | 4 |
| Length: | 67.8mm |
| Diameter: | 42mm |
| Shaft diameter: | 5mm |
| Weight: | approx. 300g |
| Timing: | 20-40 degrees (adjustable) |
| Use: | 1/8 on-road |
Ergänzende Informationen / Additional information
Verantwortlicher / Responsible
Robitronic Electronic Ges.m.b.H
Pfarrgasse 50, 1230 Wien
AUT
https://shop.robitronic.com/
esales@robitronic.com
Hersteller / Manufacturer
Shenzhen Hobbywing Technology Co., Ltd.
Building 4, Yasen Chuangxin Hi-tech Industrial Park, 8 Chengxin Road, Baolong Industrial Town, Longgang District, Shenzhen
CN
https://www.hobbywing.com/
cs@hobbywing.com
 |
ACHTUNG: Nicht für Kinder unter 36 Monaten geeignet wegen verschluckbarer Kleinteile, Erstickungsgefahr. CAUTION: Not suitable for children under 36 months due to small parts that can be swallowed, choking hazard. |
| ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen. CAUTION: Not suitable for children under 14 years of age. Use under the direct supervision of adults. |
| KV-Rate: | 2500 KV |
|---|---|
| Racing Class: | 1:8 Elektro |
| Type: | 1:8 Brushless |
Hobbywing is one of the largest manufacturers when it comes to speed controllers and brushless motors for RC racing. Hobbywing is based in Shenzhen, China and manufactures all products in its own factory. Hobbywing's speed controllers and brushless motors in particular can be seen on all RC car racetracks in the world. Hobbywing electronics are characterized by great quality and fantastic performance. Many international successes have already been achieved with a Hobbywing combo. Hobbywing electronics are used in 1:12, 1:10 and 1:8 scale RC cars and can be used for on-road and off-road racing. Hobbywing has also been a proud electronics partner of the Euro Touring Series (ETS) for several years.
