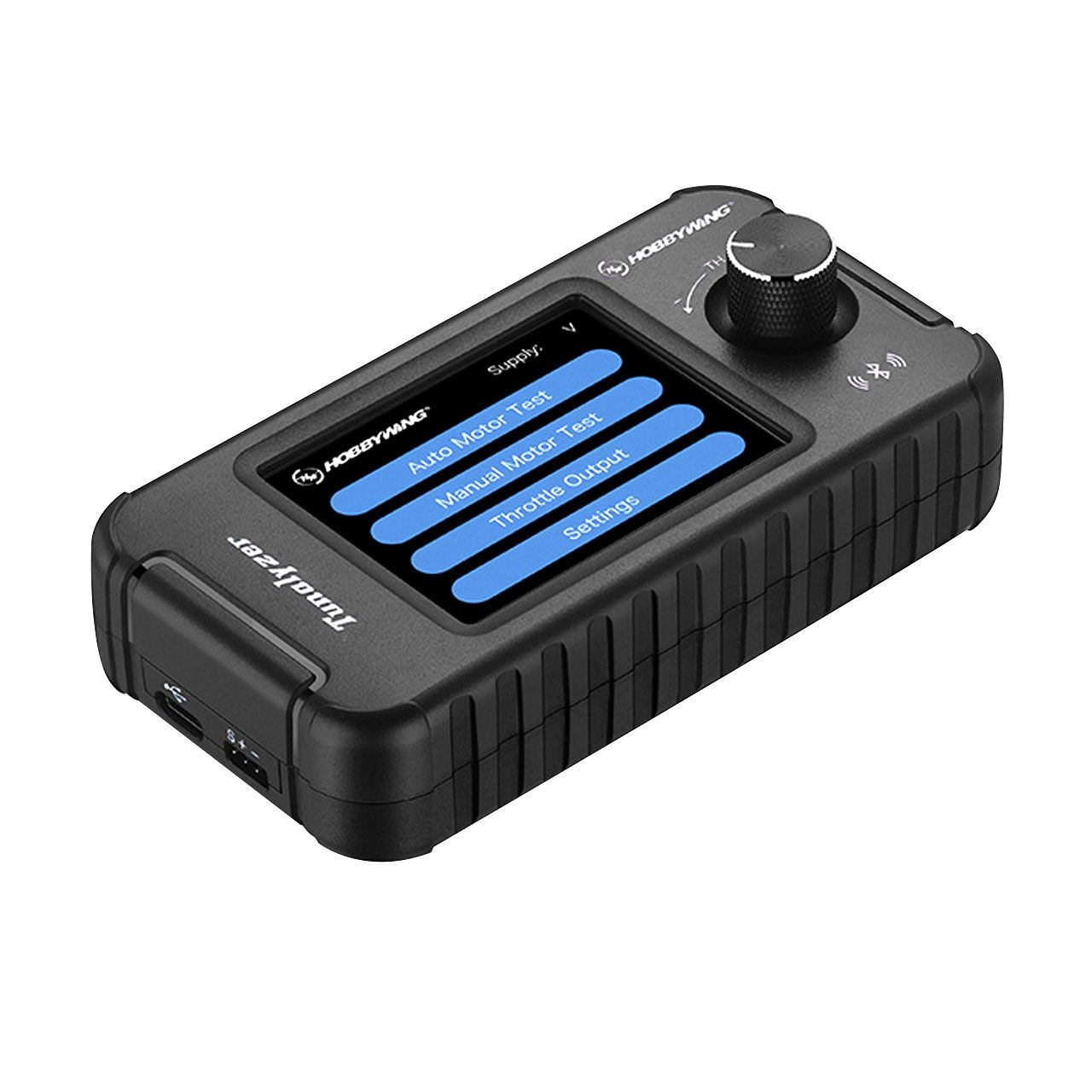

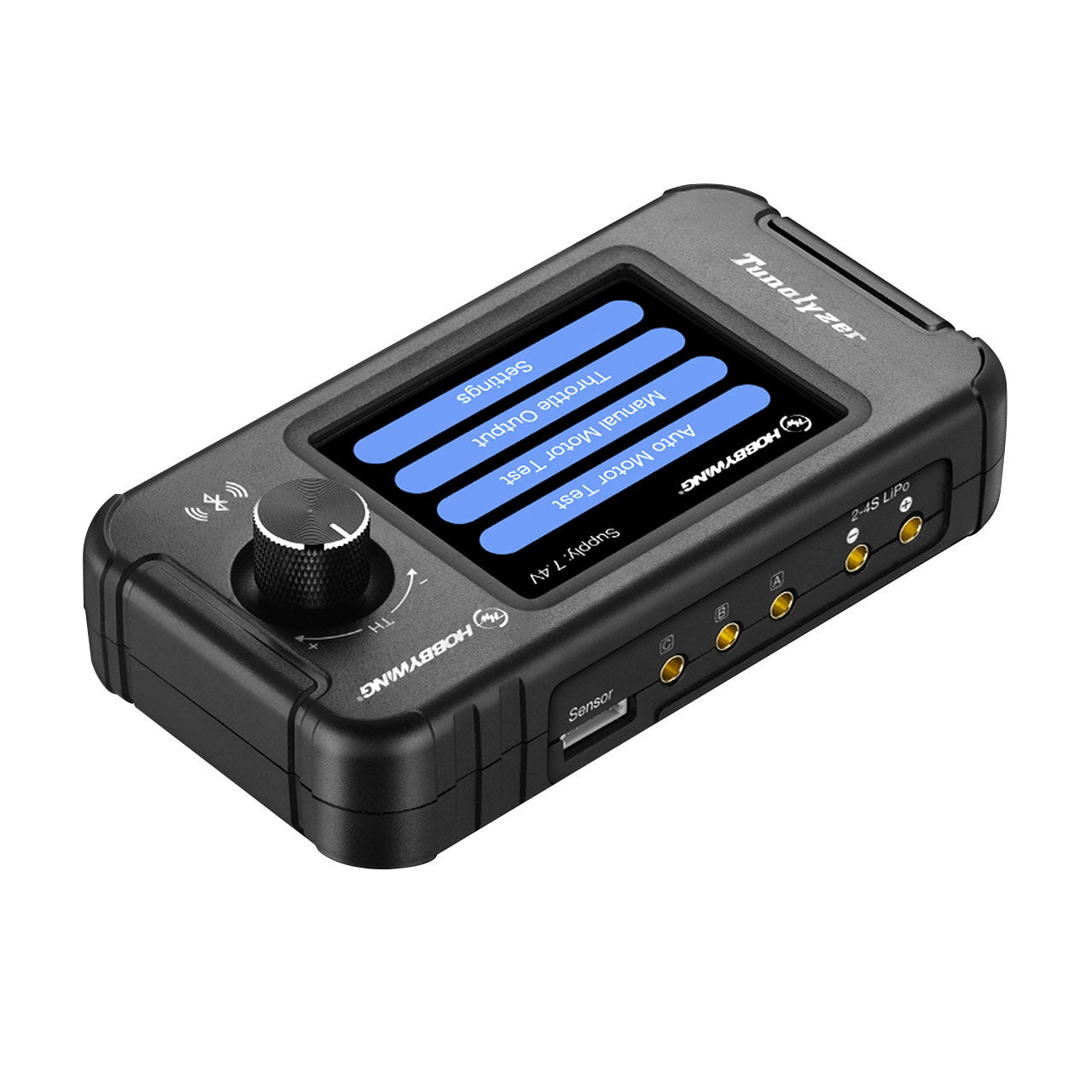

Hobbywing Tunalyzer Motortester

The Tunalyzer is the latest tool that Hobbywing drivers now recommend to achieve optimal results in the selection and maintenance of engines. Achieve meaningful and accurate results with 12 preset test parameters. Among other things, the measurement is supported by the built-in voltage regulator, which ensures that comparable results are always obtained at the same voltages.

Those who want to check their motors with the Tunalyzer need not worry about compatibility. After all, motors with up to 60 poles are supported without any problems. It also doesn't matter whether the motor has a sensor or not, is brushed or brushless. The best thing about it is that the measured speed is displayed in real time. But not only motors can be tested here. Controllers and servos can also be connected to the Tunalyzer via the PWM connection and tested.

Features

• A next generation motor tester and tuning tool
• Precise test results
• Consistent and reliable
• 8 different auto test parameters
• 4 different manual test parameters
• Bluetooth support for using the HW-Link app

Technical Specifications

• Input voltage:6 - 16.8V (2 - 4S LiPo)
• Motor Type:
• Sensored & Sensorless Brushless Motor
• 2 - 60 pole
• Accuracy
• (current value):+/- 0.01A
• Accuracy
• (Timing, Rotor, Signal):0.1 degree

Functions:

1) Measurement of: Motor current / kV value / speed, endbell timing / deviation, rotor asymmetry, Hall signal deviation and motor temperature

2) Setting and updating the controller on (which can support OTA Bluetooth module).

Dimensions:122.8 x 64.6 x 39mm (including knob height)

Weight:144g

Scope of delivery

1x Tunalyzer
