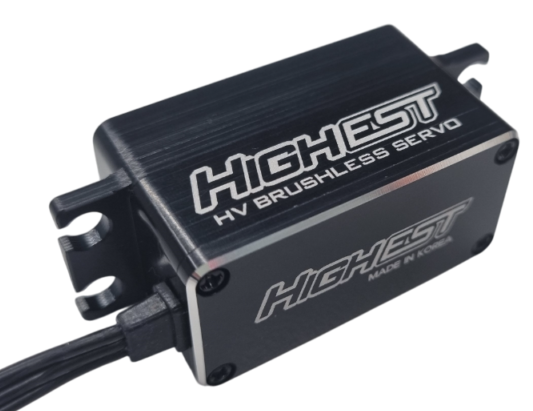

Highest L210 Low Profile Brushless Servo
Product information "Highest L210 Low Profile Brushless Servo"
The L210 is the current (March 2025) top servo in the low profile range from HIghest in Korea.
The servo impresses with great technical data and a minimalist design that looks great in any vehicle!
Due to the cable length of approx. 7cm, the L210 fits perfectly in all 1:10 touring cars and buggies!
HIghest works driver Ronald Völker currently uses the L210 in his touring cars!
Features:
- Complete steel gearbox
- Complete aluminum housing
- PCB coated
- Double ball bearings
- Very efficient brushless motor
- Servo horn output: 25 teeth
- Compatible with Sanwa SSR mode
Voltage input: 4.8V~8.4V
Actuating force:
- 6.0V:12.6 kg-cm
- 7.4V: 15.6 kg-cm
- 8.4V: 17.8 kg-cm
Actuating time:
- 6.0V: 0.07 sec/60°
- 7.4V: 0.06 sec/60°
- 8.4V: 0.055 sec/60°
Pulse / frequency: 1520µs / 333hz
Dimensions: 40 x 20.0 x 25.1 mm
Weight: 53.7g
| Car Electronics: | Servos |
|---|
Highest Korea specializes in the production of RC servos. The best quality is their goal as a professional servo manufacturer. All products are manufactured in Korea according to a patented process, including design, and undergo strict quality control. Highest always gives the best to improve itself and its products externally and internally. Ronald Völker is the number 1 factory driver at Highest and has been using the servos in his vehicles with great success for many years!
