SkyRC D200 Neo+ Charger 1-6s 20A 200W AC
Product information "SkyRC D200 Neo+ Charger 1-6s 20A 200W AC"
The D200 neo+ AC/DC multifunction charger is equipped with NFC technology and is the updated version of the D200. Specially designed for model airplanes, it offers two separate charging interfaces and supports most battery types used in the RC industry.
With the newly added BumpGO NFC technology, it is possible to save entire charging presets on a small NFC tag sticker. The sticker can then be attached to the battery and before the next charge, a simple scan on the top is all it takes and you're ready to go. So say goodbye to having to set the parameters every time.
Thanks to the two independent inputs, the charger can be used for a wide variety of charging situations. It also has a particularly user-friendly interface and powerful functions that have been taken directly from the T1000. For example, the BD350 discharging unit can also be connected to significantly increase the discharging capacity. The new appearance and the improved scroll button control make charging more convenient and easier all round. Of course, the D200 neo is also equipped with the "SkyCharger" app control and an interface for the Charger Master software for Windows/Mac OS. This means more freedom when programming and detailed information when charging and discharging.
Features:
- Including NFC charging option (BumpGO)
- 200W AC charging power
- 800W DC charging power
- Control via scroll wheel button
- Lightweight and compact
- With PD/QC3.0 fast charging
- Compatible with SkyCharger app and Charger Master
Technical data:
| AC input voltage: | 100 - 240V |
| DC input voltage: | 10 - 30V |
| Charging power: | AC max. 200W x2 DC max. 400W x2 |
| Discharging power: | 2x 10W |
| External discharging power: | max. 350W |
| Charging current: | 0.1 - 20.0A 20.0 - 35.0A (parallel connection) |
| Discharge current: | 0.1 - 2.0A |
| Balancing current: | max. 1.5A |
| Battery types: | LiXX: 1-6S NiXX: 4-15S Pb: 3S / 6S / 12S |
| Weight: | 602g |
| Dimensions: | 116x110x79mm |

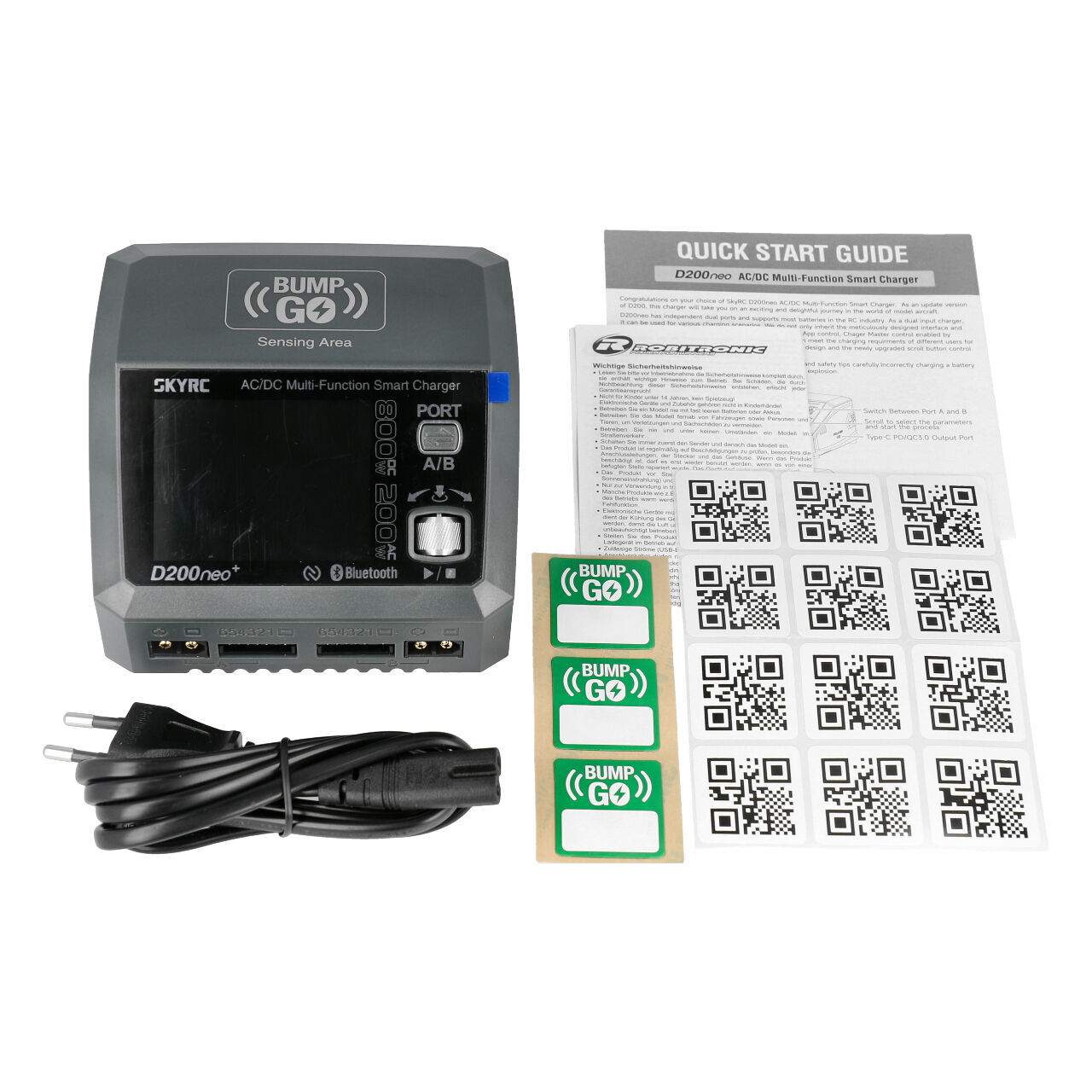

Scope of delivery:
1x D200 NEO+ charger
3x NFC tags
12x QR codes
1x manual
1x power cable
