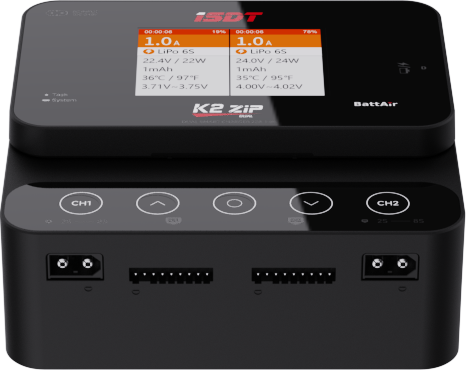

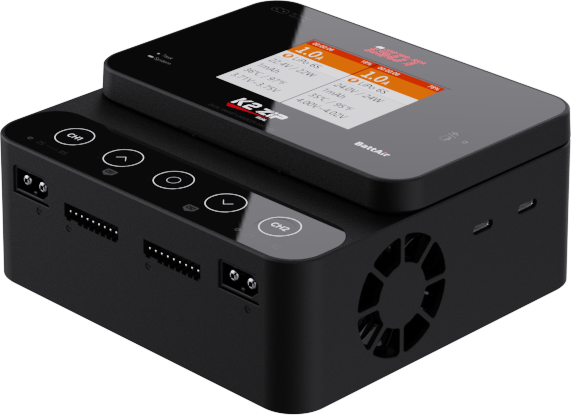

ISDT K2 ZIP Charger

The new iSDT K2 Zip charger is a powerful, compact all-round charger and the direct successor to the K2 Air.

The K2 Zip supports the BattAir system. The data of the BAP's (BattAirPlugs) are transmitted directly wireless to the K2 Zip.

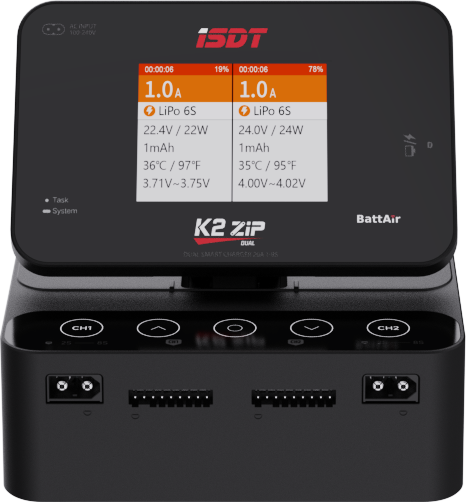

The foldable screen ensures perfect readability of the display even in poor conditions. The new touch buttons make operation easier and ensure smooth usability. Instead of the previous max. 6s LiXx, up to 8x LiXx cells are now possible!

Thanks to the integrated power supply unit with 200W power, you can charge quickly at home from a 230V socket with up to 200W power, which is divided up per port as required.

If the K2 Zip charger is supplied with DC voltage, e.g. by a battery or an external, more powerful power supply unit, up to 2x 500W power is possible! (> 24V required!)

The 200W power supply is sufficient to charge e.g. a 6s LiPo with up to 7.9A, or 2x 6s LiPo with up to 3.9A

If an external voltage source such as a car battery or a power supply unit with >24V is used, up to 500W of power can be drawn from each output, which corresponds to up to 19.8A per port!

2-8s LiXx cells can be charged, in parallel mode up to 800W are possible. The extremely powerful balancer delivers up to 1.5A / cell, so your batteries are optimally maintained and maximum performance is guaranteed.

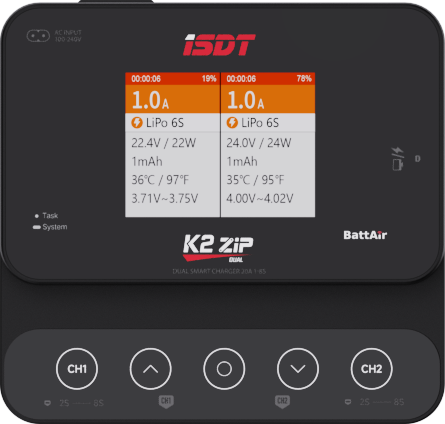

The easy-to-read 2.8" IPS display is easy to read even in direct sunlight and makes operation easier.

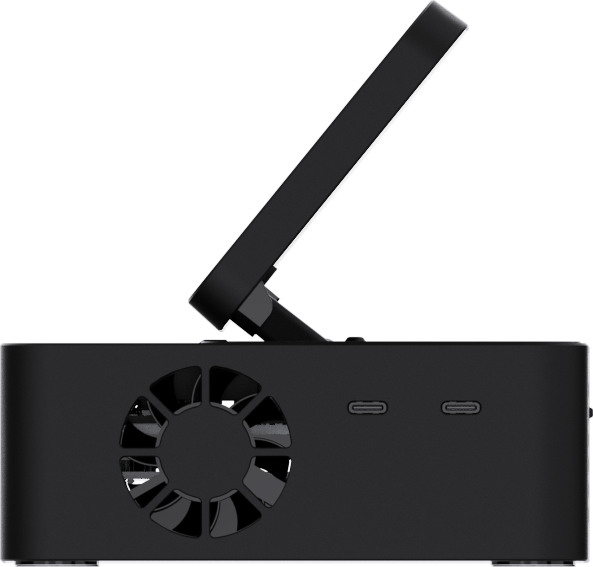

The USB-C ports can be used for software updates and offer the function of charging a smartphone, for example. (USB-C PD up to 65W)

Thanks to the compact design of 133 x 126 x 57.7mm and a weight of only 776g, the K2 Zip is easy to use on the move.

Features of the K2 ZIP:

• Powerful, compact 2-channel DUO charger with power supply and direct BattAir support
• Integrated 200W power supply, with DC voltage up to 2x 500W power!
• Charging current up to 2x 20A, USB-C PD port up to 65W, 2-8s LiXx
• Ideal for at home at 230V or on the road at 10-30V DC direct voltage
• 1.5A balancer current, up to 800W charging power in parallel mode

• Scope of delivery: mains cable, instructions, display foil, iSDT sticker
• Charging current adjustable per output: 0.2-20A
• Balancer equalizing current per output: 1.5A
• Input voltage: 100-240V AC, 10-30V DC
• Length (mm): 133
• Discharge power per output: 15W
• Max. Number of NiCd/NiMH batteries: 2-18
• Plug type input: 230V AC, XT60 DC
• Max. Voltage lead batteries: 28V
• Max. Charging current: 2x 20A
• Max. Power: 2x500W DC, 200W AC
• Max. Discharge power: 30W
• Max. charging power at one output: 500W DC
• Max. number of LiHv cells: 8
• Max. number of LiPo cells: 8
• Charging power Max Syncron: 800W
• Input current limit: DC 35A
• Integrated power supply: Yes
• Plug type charging output: XT60
