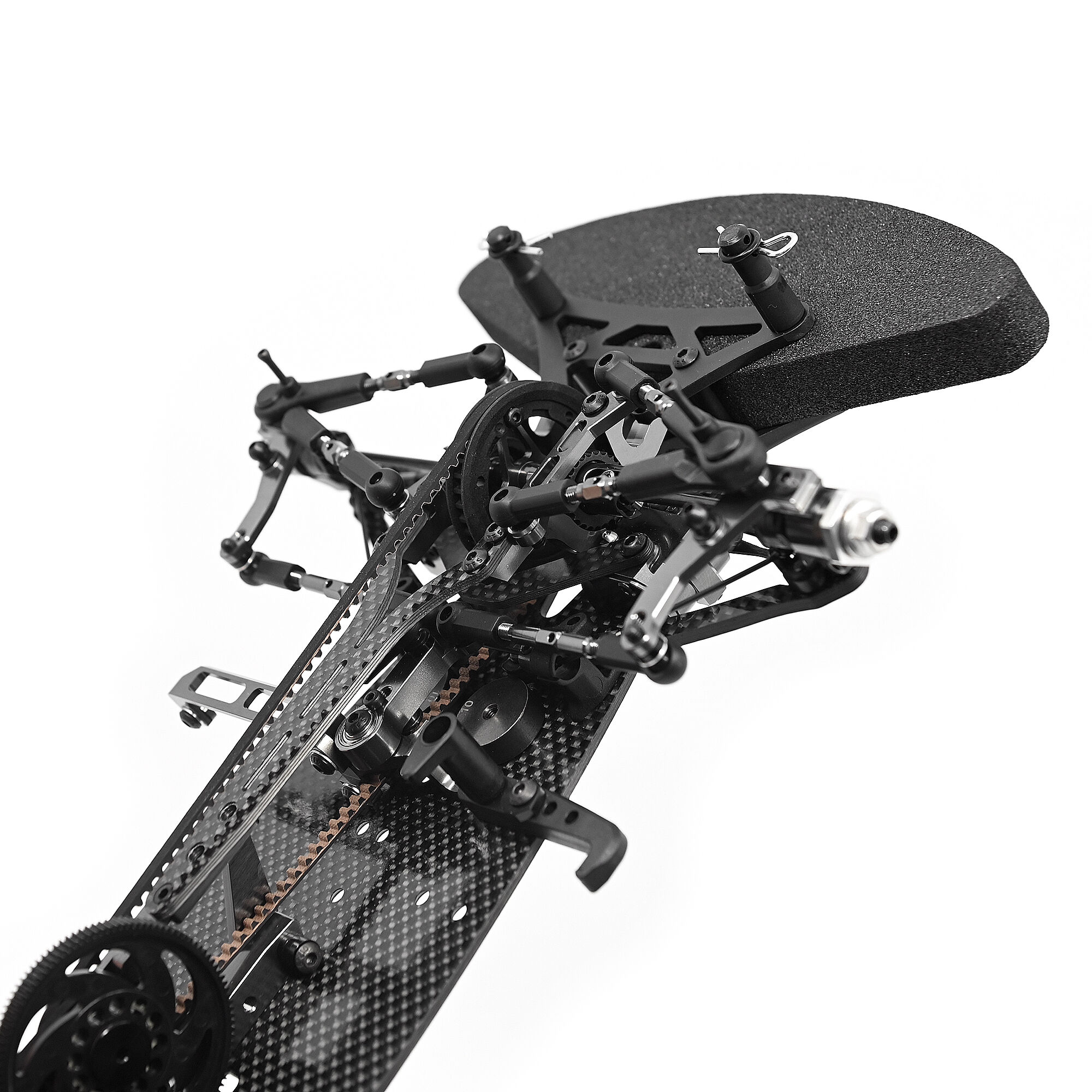

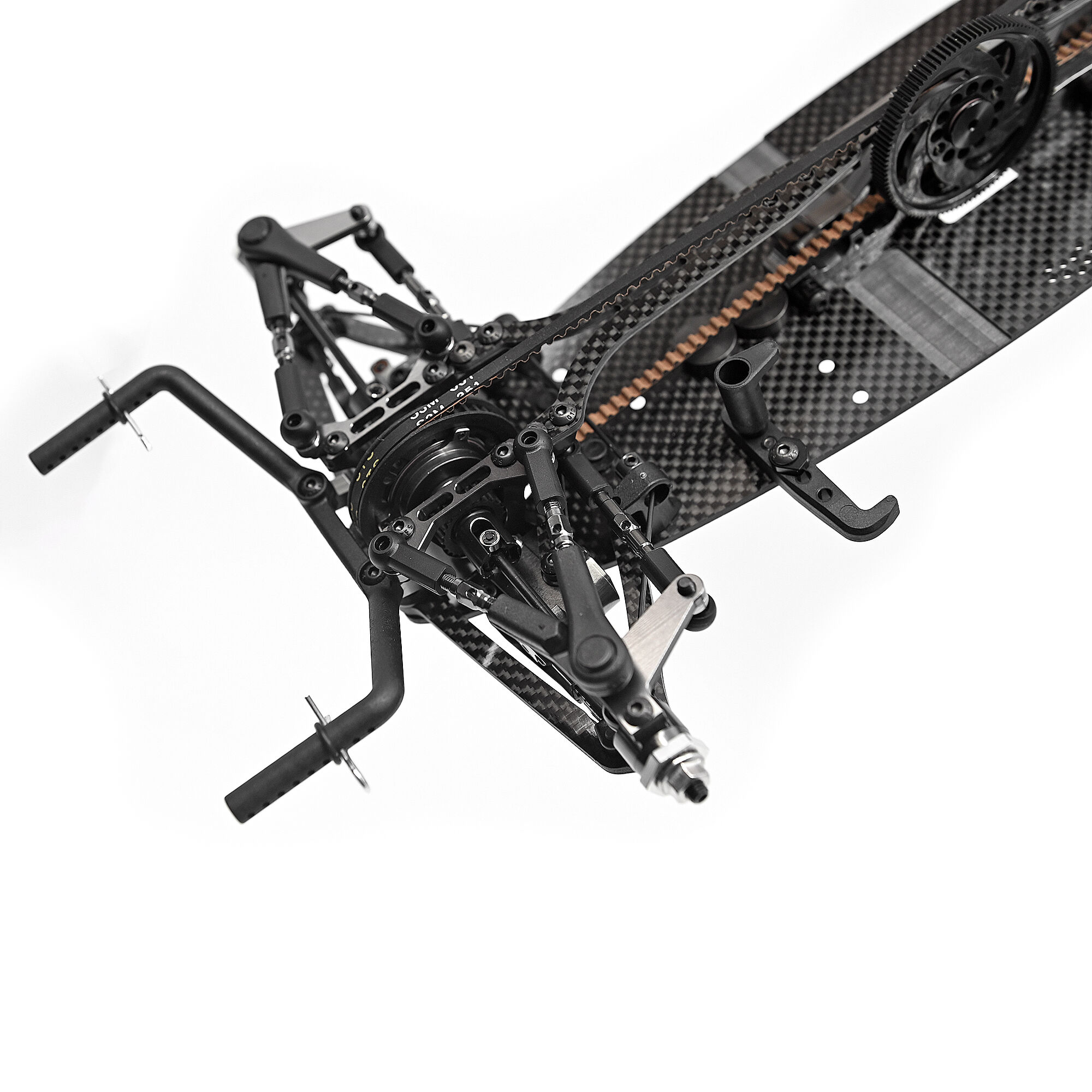

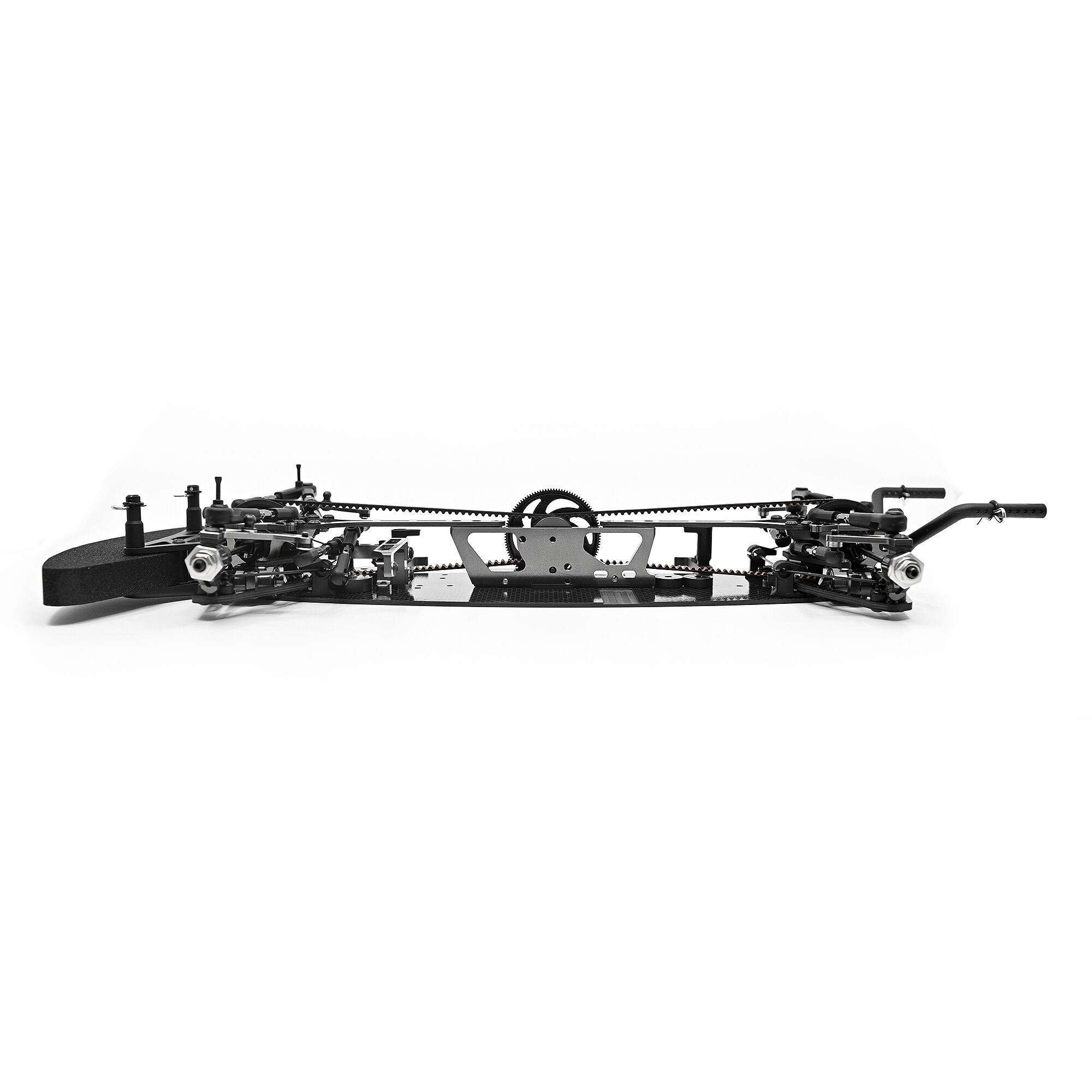

Awesomatix A800R Touring Car Kit 1:10 Carbon Chassis

Awesomatix product description

The Awesomatix A800RR builds on the success of the A800R platform and focuses on refining the revolution that the A800R brought.

While retaining the key features of the A800R - shortened chassis plate for minimal overhang and chassis friction and improved damping characteristics over the MMX platform - the A800RR incorporates several key improvements.

These include the newly developed D4 dampers, which allow seamless external switching between linear, semi-progressive and progressive damping modes without the need for a complete damper rebuild.

In addition, a new spool reduces rotating mass and allows the use of identical pulleys for both the differential and spool, optimizing maintenance and performance.

Previously only available as optional upgrades, the SPR23-R shock absorbers, AM180EVO2 steering arms and AM23-1 rear control arms are now standard in the kit, improving durability and overall performance of the car.

The newly developed AM278-EVO bulkheads introduced with the SCC steel chassis conversion kit are included as standard in the kit, making the A800RR "steel-ready" for racers looking to upgrade in the future.

The new suspension geometry introduced with the A800R platform remains unchanged, but when combined with the newly developed D4 shocks, offers unrivaled adjustability with minimal bolt-on effort.

A800RRC Features:

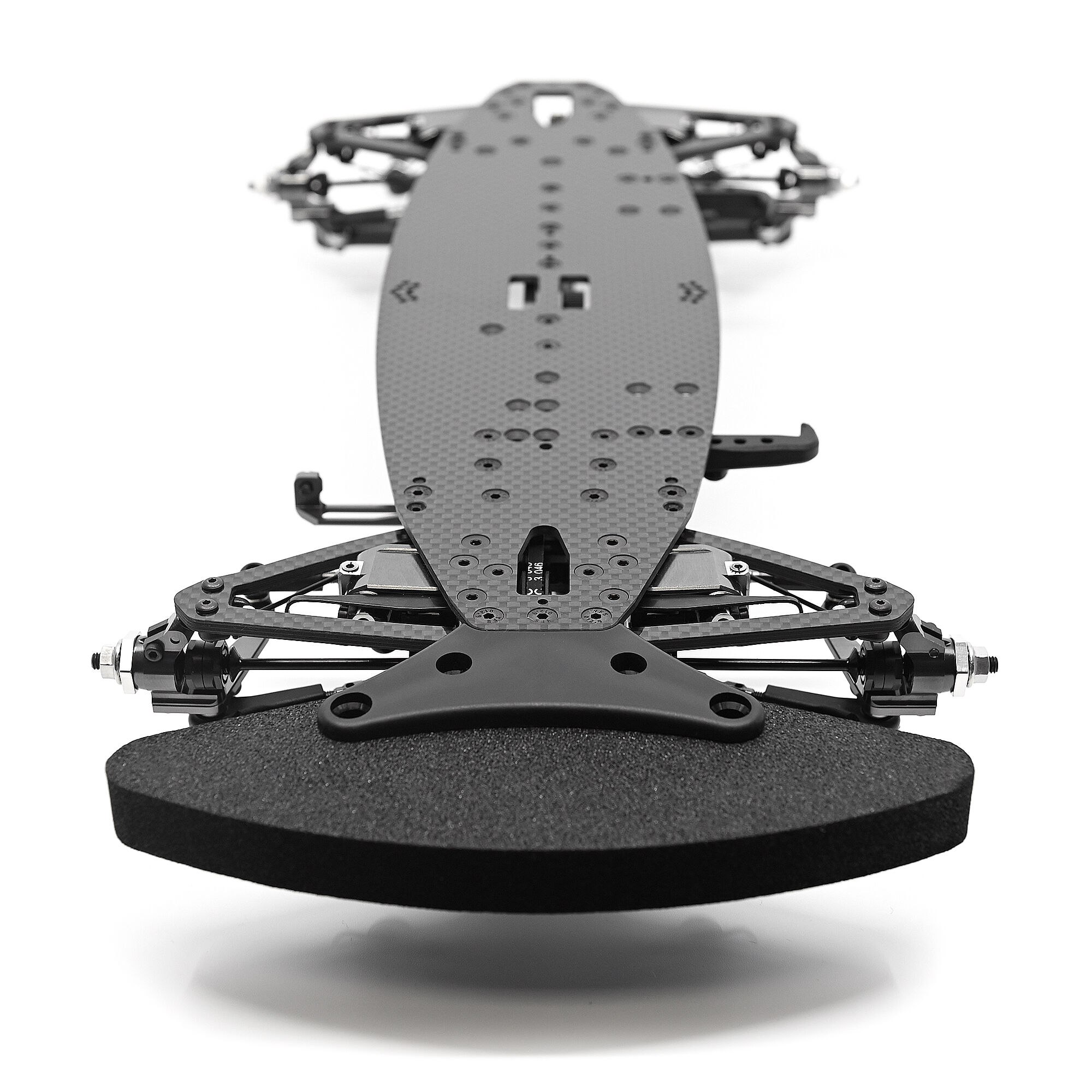

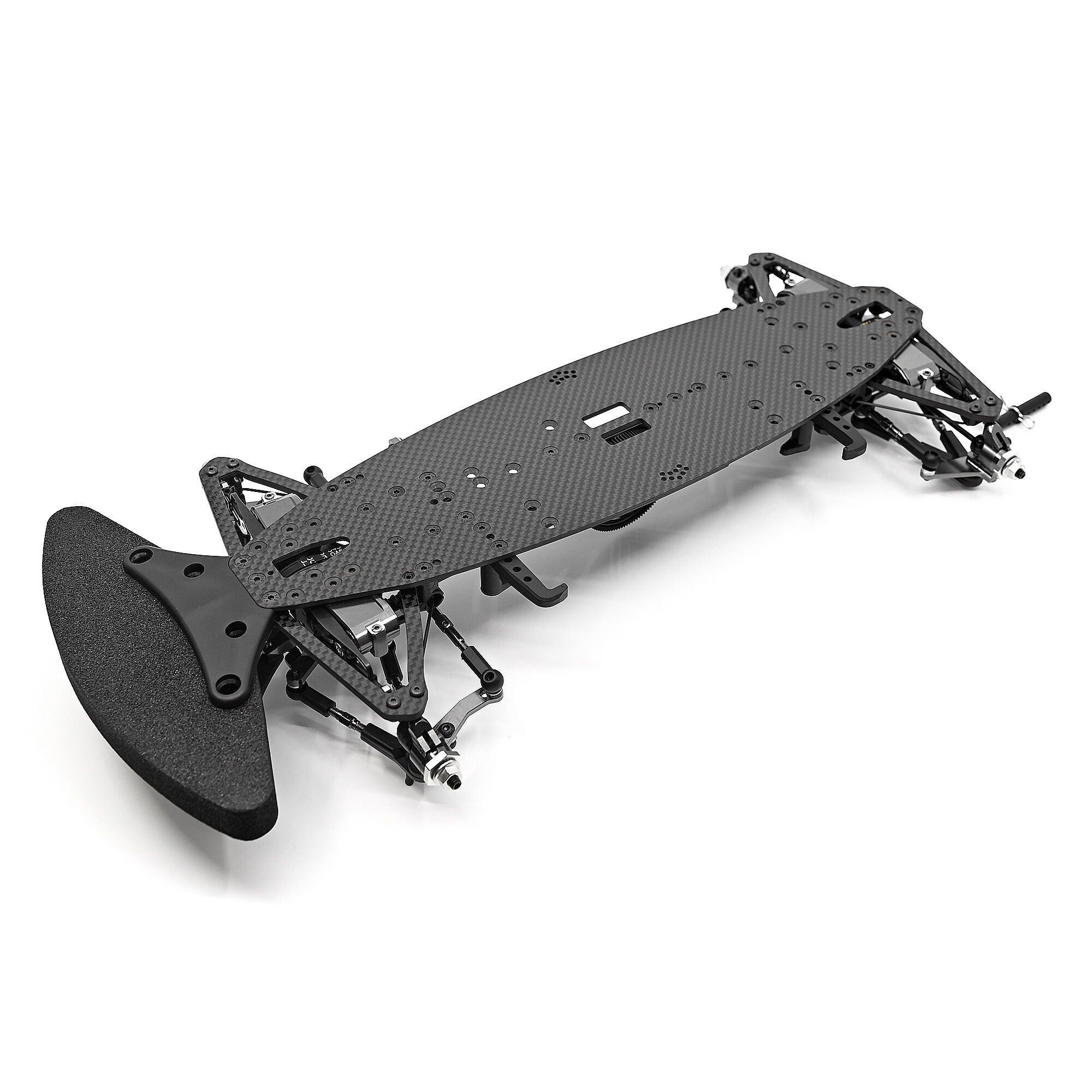

• C01B-RC 2.2 mm carbon fiber chassis plate
• C127 topecks
• SPR01 springs
• The newly developed D4 dampers offer the possibility to switch the damping effect between linear and progressive without the need for damper conversion.
• Newly developed AM278-EVO bulkheads that allow the installation of steel chassis/stepped dampers
• Redesigned AM24-25 servo mount, which is offset 3.3 mm forward for better weight distribution.
• Redesigned AT119R ride height screw brackets allowing for a wider range of spring settings
• Redesigned AT03R spool, which offers a significant weight saving and now also accommodates the P138A pulley (identical to the rear differential)
• New P03X arm ball caps for more precise and slip-free lower arm mounting.
• AM180EVO2 steering bellcrank with reinforced bearing arrangement
• AM23-1 rear steering arms preferred by team riders on all surfaces
• SPR23-R damper pointer for more precise spring adjustment

Disclaimer: Radio receiver and transmitter, ESC, servo, servo horn, motor, cooling fan, pinion and spur gear, Lipo battery, body and tires are not included in the kit.

Due to our policy of continuous product development, the exact specifications of the kit may vary. Awesomatix reserves the right to change all specifications without prior notice. All rights reserved.
