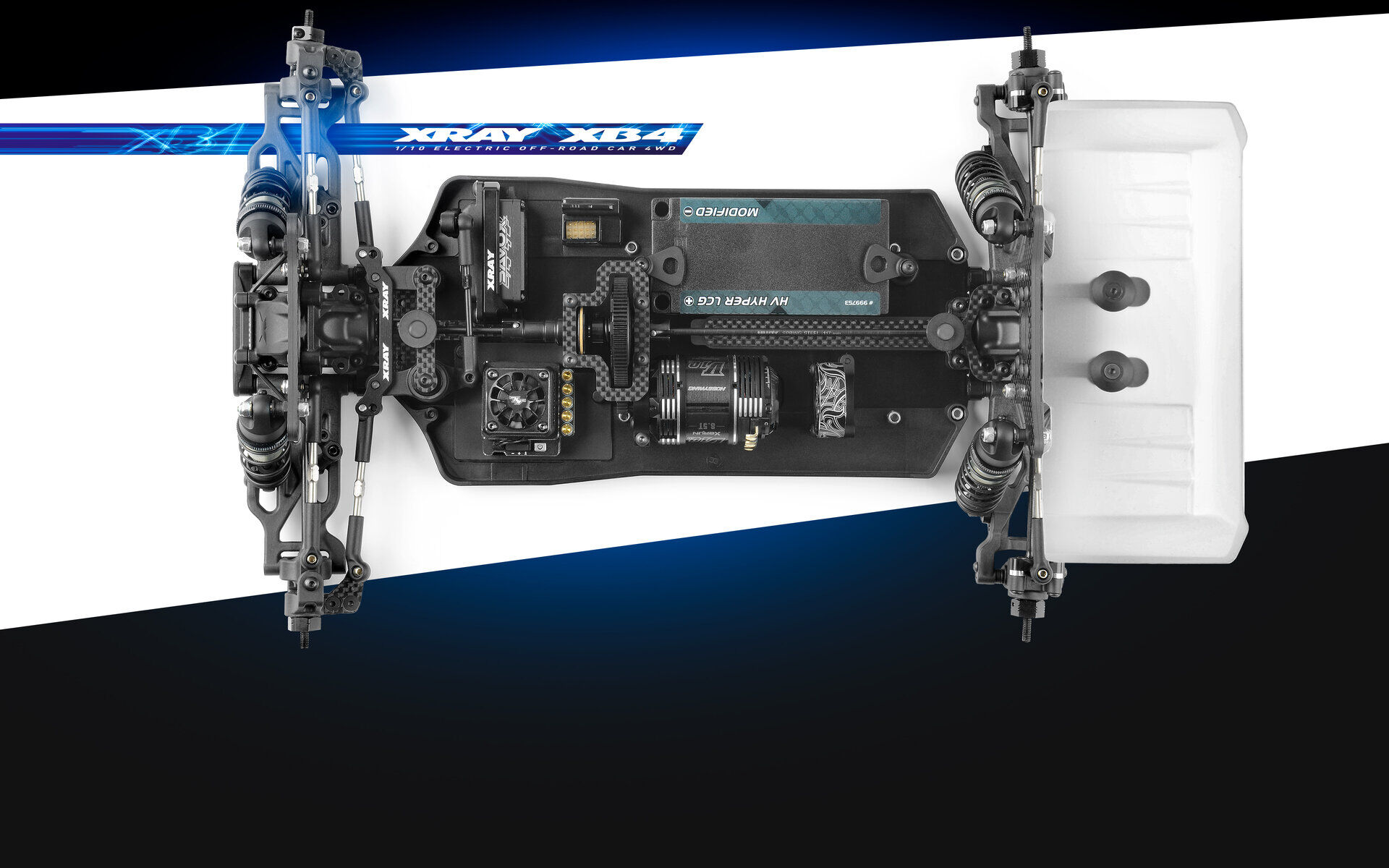

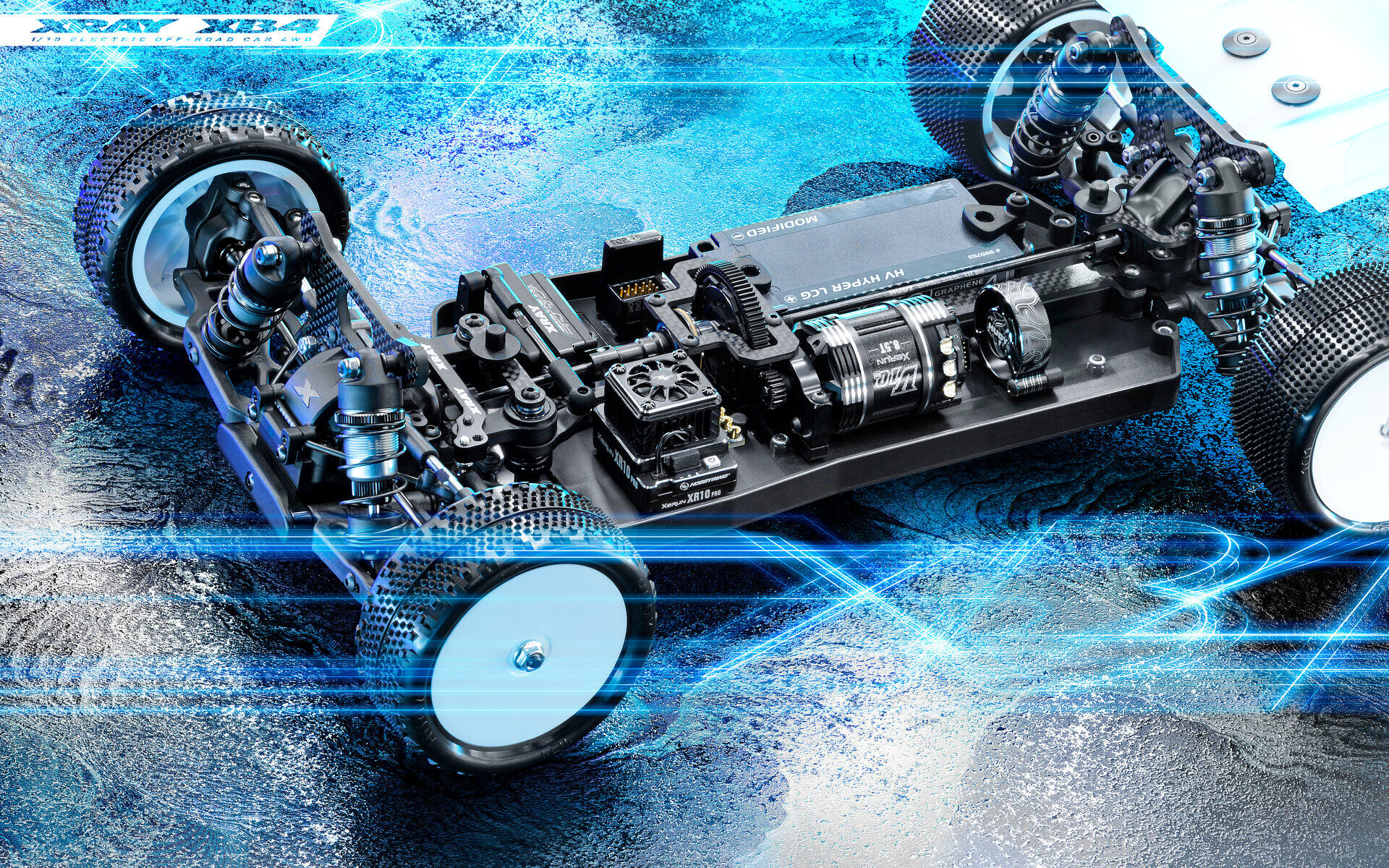

XRAY XB4C-2025 4WD 1:10 Electric Offroad Car Kit Carpet Edition

The new Xray XB4-2025 4DW buggy is here.

As always, Xray has carefully revised the old model (XB4-2024) and made significant improvements to some small details.

Here is an overview of the features and innovations:

• New chassis and adapted front bumper improve ground clearance
• 3 mm wider front wishbone brackets (A and B) increase stability and cornering speed
• Wider rear wishbone brackets (C and D) to increase stability and cornering speed
• Longer front 84 mm drive shafts enable wider geometry of the new wishbone brackets
• Graphite lower wishbones in the XB4C improve traction performance
• Hard front lower wishbones on the XB4D increase traction
• Graphite C-hubs improve responsiveness and consistency
• New front steering blocks with externally adjustable carbon steering plates for extended tuning options
• Steering blocks made from graphite material for improved response and consistency
• 2 dotted front carbon steering plates for balanced handling characteristics
• Larger 3.5 mm turnbuckles for improved durability
• Larger 5.4 mm composite ball heads and ball joints for improved durability and reduced friction
• Redesigned front and rear stabilizer bar geometry with super easy adjustment from the top
• 1.8mm F&R (XB4C) and 1.2/1.3mm F/R (XB4D) shorter stabilizer bars improve handling
• Shorter 113mm rear driveshaft in the XB4D for a short wheelbase, recommended for lower traction conditions
• Front 2 points lower carbon shock tower for a lower center of gravity and improved cornering speed
• Rear carbon shock tower lowered by 3 points for a lower center of gravity and increased cornering speed
• Shorter front and rear shock bodies and shafts to match the new lower shock tower geometry and lower center of gravity
• New +2mm & +4mm shock absorber ball joints for increased adjustability for all different track conditions
• New -2mm & -4mm composite spring cups with cleaning holes for extended ride height adjustments
• Rear lower aluminum shock adapters on the lower control arms improve handling on carpet (XB4C only)
• New shorter lower wishbones with 3 damper mounting positions.
• Graphite colored lower control arms in XB4C improve traction performance
• Hard rear lower wishbones in XB4D improve traction
• Aluminum steering plate increases strength and improves steering response in high traction (XB4C)
• Graphite composite steering plate improves low-traction handling (XB4D)
• Aluminum monoblock servo mount improves strength, different bending characteristics and durability
• Graphite rear uprights improve consistency and cornering speed
• Steel gears in the front and rear differentials for maximum durability and reduced wheel spin
